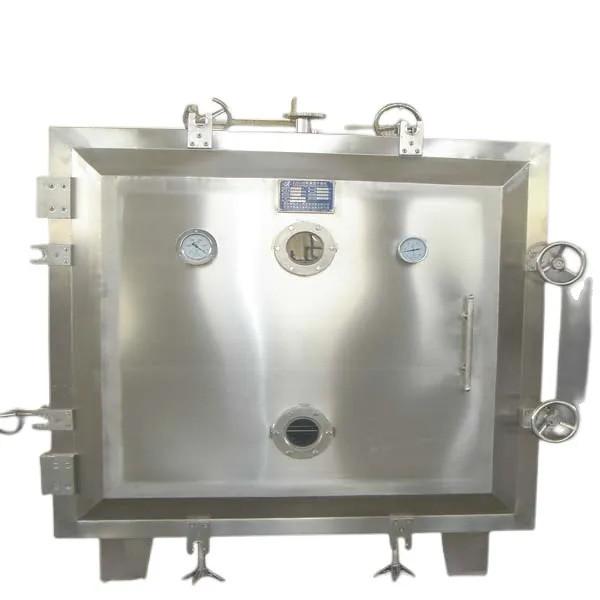

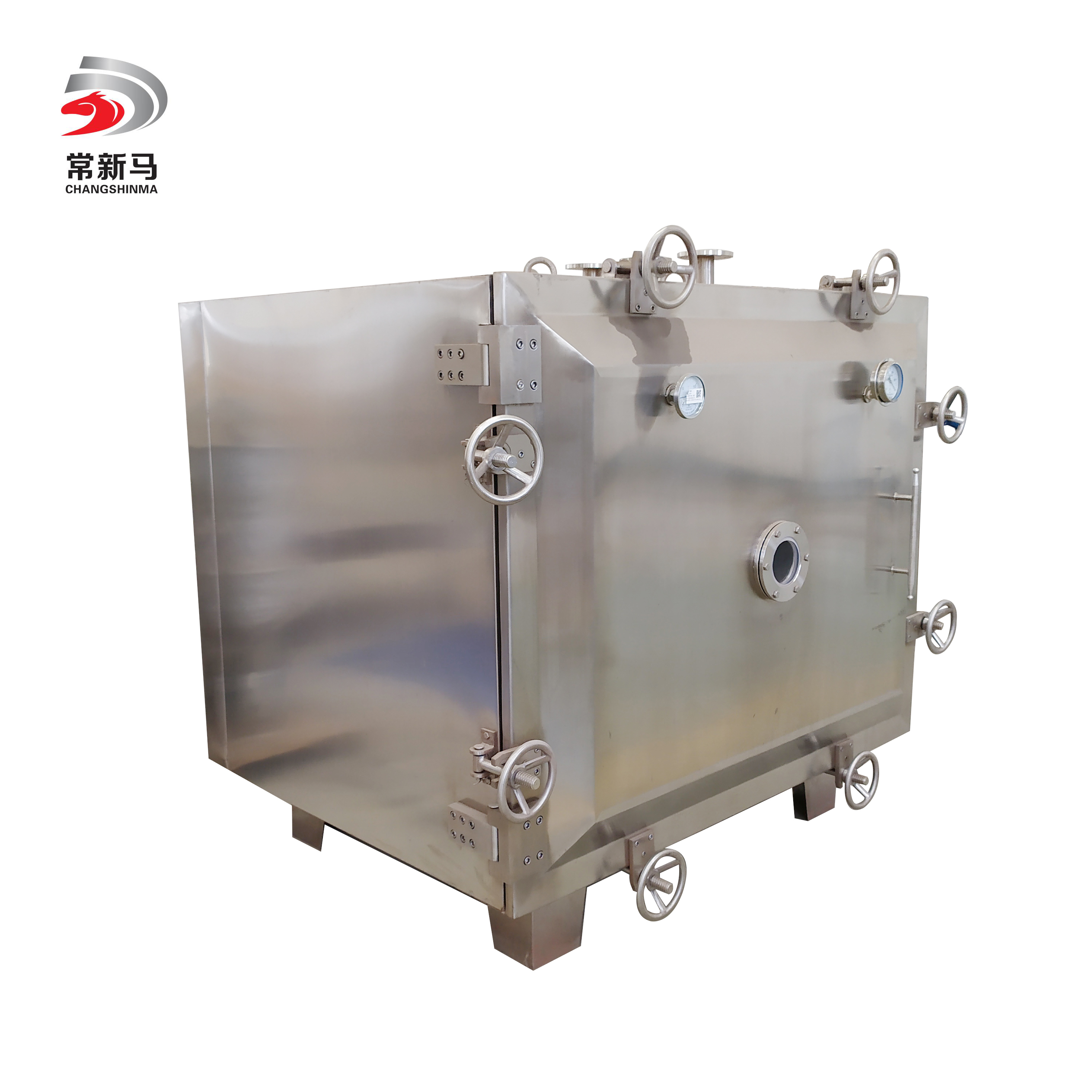

Fruit Vacuum Drying Machine Vtd Dryer

Name: Fruit Vacuum Drying Machine Vtd Dryer
Brand: Shinma
Price: 20 USD

Fruit Vacuum Drying Machine Vtd Dryer Manufactures

Place of Origin : China

Brand Name : Shinma

Packaging Details : As per customer's requirement

Supply Ability : 20 Set/Sets per Year

Price : $20,000.00/sets 1-1 sets

Type : Vacuum Drying Equipment

Drying Capacity (kg) : 60

Application : Medicine Processing, Chemicals Processing, Food Processing

Condition : New

Voltage : 220V-480V

Power : 5.5kw

Dimension(L*W*H) : 2m*1.7m*1.5m

Key Selling Points : Energy saving

Warranty : 1 Year

Weight (KG) : 1400

Applicable Industries : Manufacturing Plant, Food & Beverage Factory, Farms, Home Use, Food Shop, Food & Beverage Shops

Showroom Location : None

Marketing Type : Other

Machinery Test Report : Provided

Video outgoing-inspection : Provided

Warranty of core components : 1 Year

Core Components : Bearing, Pump, Gear, Motor, Gearbox, Other, PLC, Engine, Pressure vessel

Evaporation Capacity(kg/h) : 100

Heating Method : gas steam electricity oil

Material : SUS304, SUS304L, SUS316, SUS316L, Ti, Other

Port : Shanghai

Contact Now

low temperature fruit vacuum tray dryer drying equipment price

FZG 10 vacuum tray oven dryer industrial drying equipment

Under normal pressure, pure water starts to boil at 100 C, but under vacuum condition, as vapor pressure in the system is lower than that of material surface, boiling point of water will be lower than 100C. For example, when surface pressure decrease to 0.07Mpa, pure water boil at 70C. So even operate under low temperature condition, such vacuum dryer have strong drying intensity.

FEATURES AT A GLANCE

1.lt can get higher drying capacity at lower temperature and the heat energy can be used fully.
2.It is suitable for materials such as heat sensitive and easy oxidizable material.
3.It can dry raw materials that contain solvent and which needs to be recovered.
4. Before drying, it can carry out disinfectant treatment. During the period of drying, any impurity can not enter it.
5.The dryer belongs to static drying, materials will not be damaged.
6. The machine is a kind of batch type operation and can adjust technical process at any time.
7.The inner top is designed arch structure, it can effectively avoid the condensed water drop back.
8. Vacuumize from 4 points to one point, can guarantee uniform drying.

PRODUCT SPECIFICATIONS

No	Item	Data(choose as model FZG-10)
1	Inner size of drying chamber	150010601220
2	Outer size of drying chamber	192417201513
3	Layers of backing support	5
4	No.of tray	20
5	Operating temperature of backing support	35-150
6	Vacuum degree inside the chamber when operation in box(Mpa)	-0.1
7	Model and power of vacuum pump when condenser is used(kw)	2x-90A 5.5kw
8	Model and power of vacuum pump when condenser is not used(kw)	SZ-2 4.5kw
9	Weight of drying chamber(kg)	1400

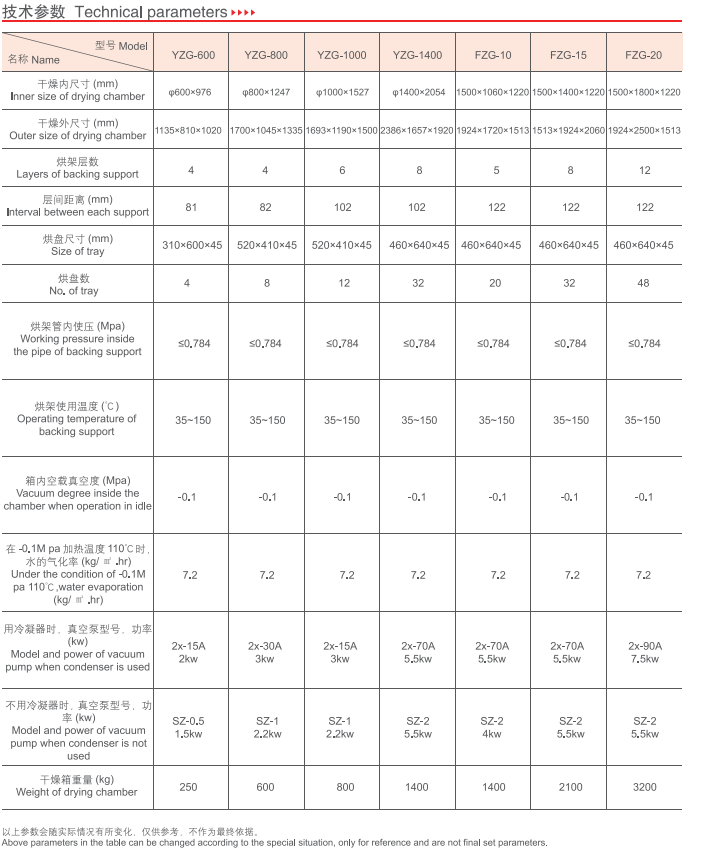

Other model technical parameters

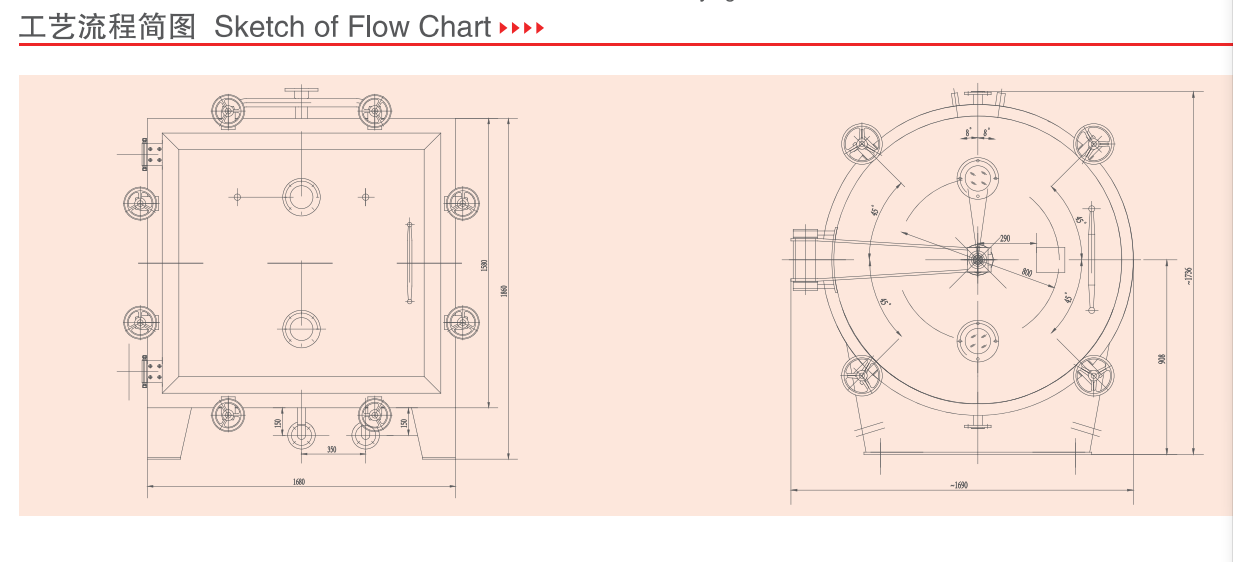

Sketch of Flow Chart
